Versatile Pre-made Pouch Packing Machine: Flat/Stand-up/Zipper
| MOQ: | 1 |
| Prijs: | Negotiations |
| Standaardverpakking: | Internationale standaardverpakking voor verzending |
| Leveringstermijn: | 30 dagen |
| Betalingswijze: | L/C, T/T, Western Union |
| Toeleveringskapaciteit: | 300 sets per jaar |
Gedetailleerde informatie
Plaats van herkomst
Sjanghai
Merknaam
Waylead
Certificering
/
Modelnummer
WG-250
Document
Verpakkingssnelheid:
≦70 zakken/min
Zakformaat:
Lengte: ≦400 mm, breedte: 130-260 mm
Filmmateriaal:
Platte zakken, stazakken, zakken met ritssluiting, zakjes van composietfilm en andere soorten.
Voeding:
380V
Luchtverbruik:
5-7kg/cm2; 0,4m3/min
Vermogenstype:
Elektrisch
Stroomverbruik:
8 kW
Materiaal:
Stianloos staal
Verpakkingsassortiment:
Korrels Poeder Vloeistof
Markeren:
premade pouch packing machine with zipper
,versatile pouch packing machine flat stand-up
,premade pouch packing machine for packaging
Productbeschrijving

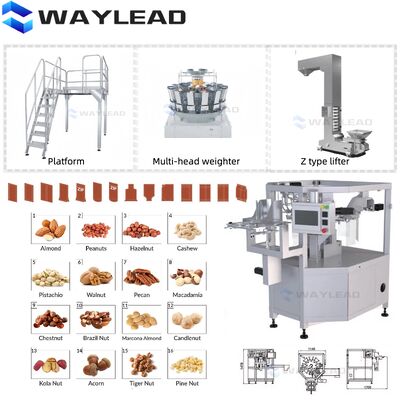

Versatile Pre-made Pouch Packing Machine: Flat/Stand-up/Zipper
Not all pouches are the same, and your packaging line shouldn’t force you to choose. This versatile pre‑made pouch packing machine runs flat pouches, stand‑up pouches, and zipper pouches on the same platform. Changeover between bag types takes less than 15 minutes, with no tools required. That means one machine serves multiple product lines, reducing capital expense and floor space.
The machine uses a rotary or intermittent motion design, depending on speed requirements. It picks a bag from the magazine, opens it with suction cups and air blow, fills the product through a customizable filler (auger, piston, cup, or multi‑head weigher), and seals the bag with precision temperature control. For zipper bags, an optional applicator pre‑positions the zipper track before sealing.
This packer is ideal for co‑packers, contract manufacturers, and food companies with diverse product portfolios. One day you can run 10,000 bags of frozen vegetables in flat pouches; the next day, switch to 5,000 bags of protein powder in stand‑up pouches. The PLC stores up to 100 recipes, making repeat orders consistent and error‑free.
Technical Specifications
| Specification | WG-210 | WG-250 | WG-300 |
|---|---|---|---|
| Bag Size | Length: 120-380mm Width: 90-210mm |
Length: ≤400mm Width: 130-260mm |
Length: ≤400mm Width: 160-300mm |
| Packing Speed | ≤70 bags/min | ≤70 bags/min | ≤65 bags/min |
| Work Stations | 8 | 8 | 8 |
| Packaging Formats | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches |
| Power Supply | 380V | 380V | 380V |
| Total Power | 8Kw | 8Kw | 8Kw |
| Air Consumption | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min |
| Film Material | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films |
| Machine Weight | 500kg | 580kg | 850kg |
| Machine Dimensions | 1700×1140×1470 mm | 1850×1250×1520 mm | 2100×1500×1520 mm |
Application Range
Block Items
Candy, chocolate, rock candy, biscuits, pastries, peanuts, green beans, pistachios, nuts, cooked food, pickles, puffed foods, daily necessities
Particles
MSG, chicken essence, sugar, melon seeds, nuts, capsules, granular medicines, seeds, feed, pesticides, fertilizers, chemical raw materials
Powders
Condiments, monosodium glutamate, salt, glucose, refined sugar, milk powder, washing powder, pesticides, fertilizers, chemical raw materials
Liquids
Rice wine, soy sauce, rice vinegar, juice, beverages, detergents
Sauces
Tomato sauce, peanut butter, jam, chili sauce, bean paste
Other Materials
Various other products suitable for bagging
Key Features & Advantages
GMP Compliance & CE Certification
Dual authoritative certifications meet stringent quality and safety requirements for pharmaceutical, food, and healthcare sectors. Streamlines global market access and eliminates international trade barriers while safeguarding product quality and consumer health.
Full Servo Control System
Ultra-reliable, high-speed precision operation with reduced equipment failure rates and unplanned downtime. Adapts flexibly to variable packaging rhythms and fulfills high-throughput production demands with pinpoint accuracy in material dosing, zipper doypack forming, and heat sealing.
Intelligent Empty Bag Tracking
Real-time detection of bag presence with instant interlock control to prevent empty bag sealing. Reduces packaging material waste, slashes manual sorting labor, lowers production costs, and enhances finished product purity.
8-Station Integrated Structure
Seamless connection of multiple packaging processes governed by programmable PLC system. Features 6 user-friendly flat touch screens and intuitive HMI interface for hassle-free parameter setting, real-time production monitoring, and quick troubleshooting. Lowers operator training threshold and guarantees long-term stable production.
Complete Packaging Solutions
Our comprehensive packaging range includes VFFS machines, flow wrapping machines, heat shrink packaging, pouch packing machines, and complete automated packaging lines with weight inspection, metal detection, carton packing, sealing, coding, and palletizing systems.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a manufacturer, providing quality products at factory price. Welcome to visit us!
What quality guarantee or warranty do you provide?
We provide high-quality machines with a 3-year warranty and lifetime technical support.
When can I get the machine after payment?
Delivery time depends on the specific machine model ordered.
How do you provide technical support?
24/7 support via phone, email, or messaging platforms; installation guides and videos; overseas engineering services available.
How does your after-sales service work?
Machines are pre-adjusted before shipment with free training available. Lifetime technical support provided via multiple communication channels.
How about spare parts?
We provide a comprehensive spare parts list for reference.
Can you help with custom design requirements?
Customized design available with our experienced mechanical engineers.
Can you help analyze and design machines for new product samples?
Yes, our technical department can analyze, design, and test new products you provide.
How do I start an order?
30% deposit after signing contract, production arrangement, pre-shipment testing and inspection, balance payment before shipment.
Can you send product catalog and price list?
Electronic catalog available. Please consult us for specific product pricing.
Can I visit your factory?
Yes, welcome to visit our factory at Room 304, Wanchuangfang, No.155 Anzhi Road, Jiading District, Shanghai, China.
